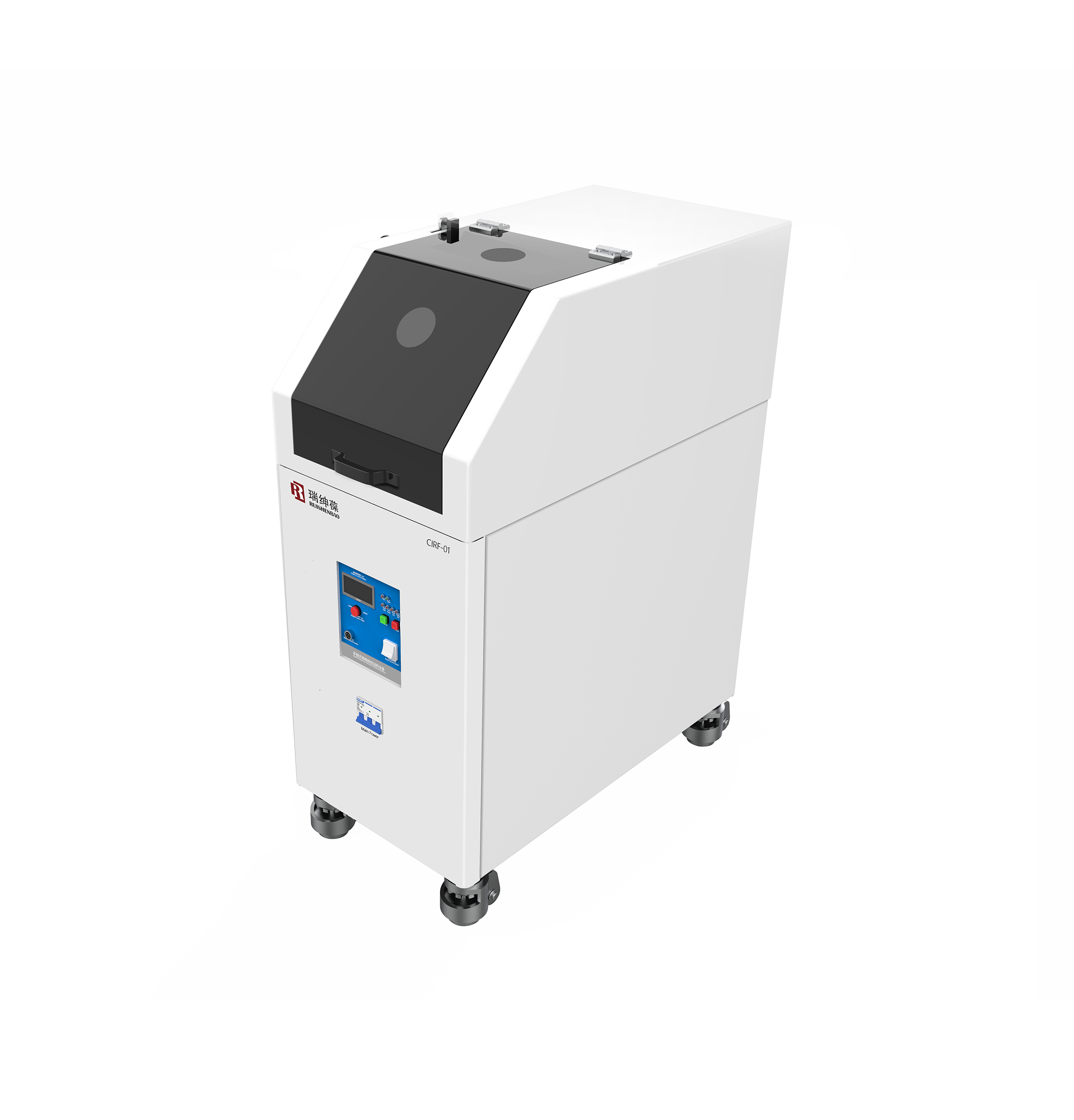

Cast iron remelting machine CIRF-01

Cast iron remelting machine CIRF-01,is specially developed by Ruishenbao analytical Technology (Shanghai) Co., LTD. For the recasting of cast iron pig iron and other metal material samples. The problem of pretreatment for sample testing of cast iron, pig iron and other metal materials was solved. This remelting machine is easy to operate and the surface of the remelted sample is whitened thoroughly. It is a rare auxiliary equipment for direct reading spectrometers and other instruments to analyze cast iron pig iron and other metal materials . Advantage
  • It melts quickly, reaching a maximum temperature of 1700℃.
  • With a special dumping device, no crucible  and no crucible tongs are needed, the melted samples can be directly dumped into the prepared die, and the ideal sample shape can be poured.
  • Simple operation and installation, user-friendly design.
  • Neat appearance, closed work, operators work safety factor is high.


Security
■ Application area
■ Technical parameter

Crucible capacity

20-200g

Total power

20KW

The power supply voltage

Three-phase 380V,50Hz

The inside diameter of the inlet and outlet pipe

Φ10mm

Feed water pressure

0.15-0.2MPa

Size(L×W×H)

500× 860 ×1100mm

Net weight

100KG


NEXT : Centrifugal casting machine CCRM-01
